ML45
Description:

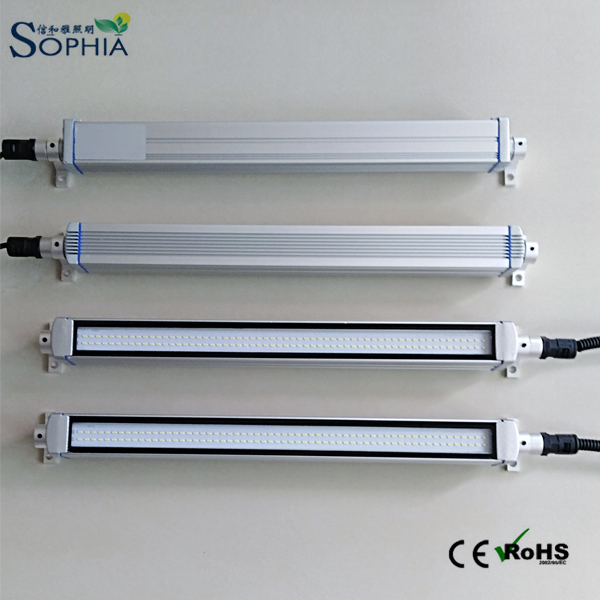

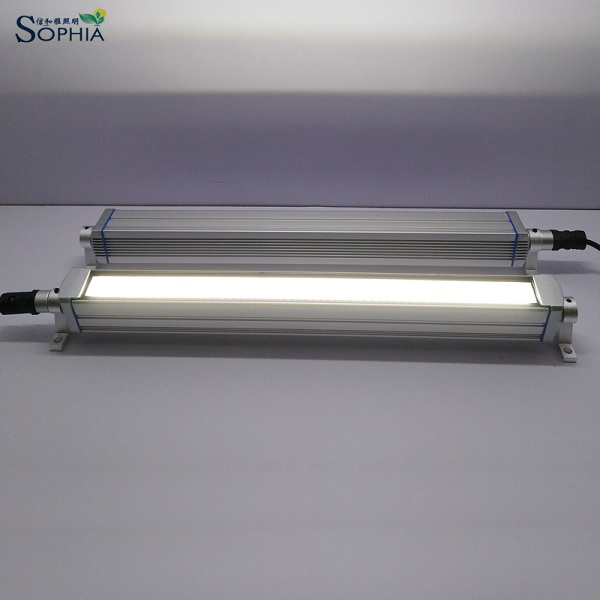

ML45  Series Heavy duty Industrial Light

Feature

Use the latest Energy saving led lightings technology, High purity & strong aluminum alloy body,tempered glass, can withstand toughest environment, water proof, oil, chemical resistant,  maintenance free .

Bright, Light evenly and uniform

24VDC or 100-260VAC

Mounting angle 360°adjustable

Quick Spec

Input: 24V DC or 100-260V AC

Electric protection: Over-current, over load protection. For DC input, polarity free

Working environment:-40℃ +50℃

Humidity: 90% at 50℃(non-condensing)

Material: High purity aluminum alloy and reinforced PC

Color tempertuare:4500K-5500K or 6000K-7000K

Wiring connection: 1 meter cable or Quick connector

Lighted Length: 300mm, 450mm, 600mm, 900mm, 1200mm

IP rating: IP68

Approval: CE, FCC

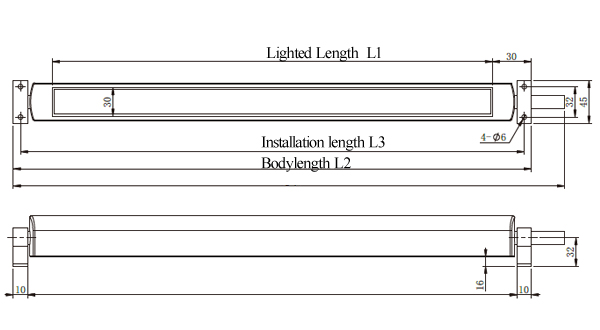

Model

ML45-XXX

Power(W)

Lumen(LM)

L1(mm)

L2(mm)

L3(mm)

200mm

6

600

180

280

233

300mm

10

1000

280

380

333

400mm

12

1200

345

445

398

500mm

16

1600

480

580

533

600mm

20

2000

580

680

633

800mm

28

2800

750

850

803

900mm

30

3000

880

980

933

1200mm

40

4000

1150

1250

1203
