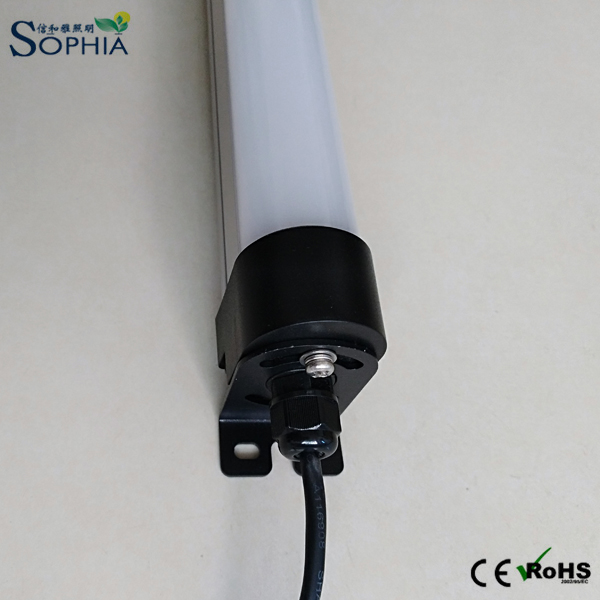

ML32 Series Linear Working Light
Feature
Use the latest Energy saving led lightings technology, High purity aluminum alloy body,reinforced PC cover, strong and compact, can withstand toughest environment, no glare, maintenance free .
Bright, Light evenly and uniform
24VDC or 100-260VAC

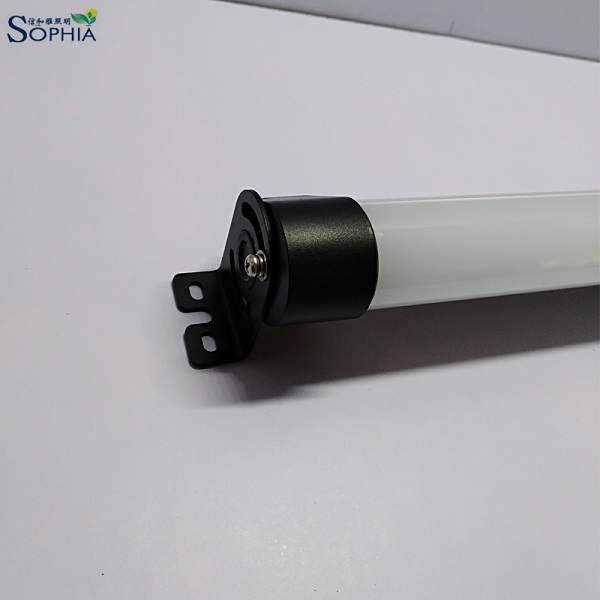

Mounting angle adjustable
Quick Spec
Input: 24V DC or 100-260V AC
Electric protection: Over-current, over load protection. For DC input, polarity free
Working environment:-40℃ +50℃
Humidity: 90% at 50℃(non-condensing)
Material: High purity aluminum alloy and reinforced PC
Color tempertuare:4500K-5500K or 6000K-7000K
Wiring connection: 1 meter cable or Quick connector
Lighted Length: 300mm, 450mm, 600mm, 900mm, 1200mm
IP rating: IP65
Approval: CE, FCC
|
Model ML32-XXX |
24V DC |
230V AC |
||||
|
|
Current(A) |
Power(W) |
Lumen(LM) |
Current(A) |
Power(W) |
Lumen(LM) |
|
300mm |
0.45 |
10.8 |
1080 |
0.05 |
12 |
1200 |
|
450mm |
0.68 |
16.2 |
1620 |
0.08 |
18 |
1800 |
|
600mm |
0.9 |
21.6 |
2160 |
0.11 |
24 |
2400 |
|
900mm |
1.35 |
32.4 |
3240 |
0.16 |
36 |
3600 |
|
1200mm |
1.8 |
43.2 |
4320 |
0.22 |
48 |
4800 |
|

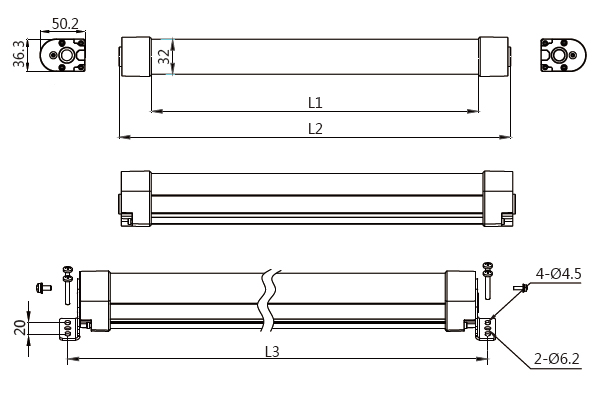

Model ML32-XXX |
Lighted Length L1(mm) |
Body length L2 (mm) |
Installation length L3 (mm) |
|
300mm |
300 |
359 |
376 |
|
450mm |
450 |
509 |
526 |
|
600mm |
600 |
659 |
676 |
|
900mm |
900 |
959 |
976 |
|
1200mm |
1200 |
1259 |
1276 |
|
