RL50-S
Description:


Item No.

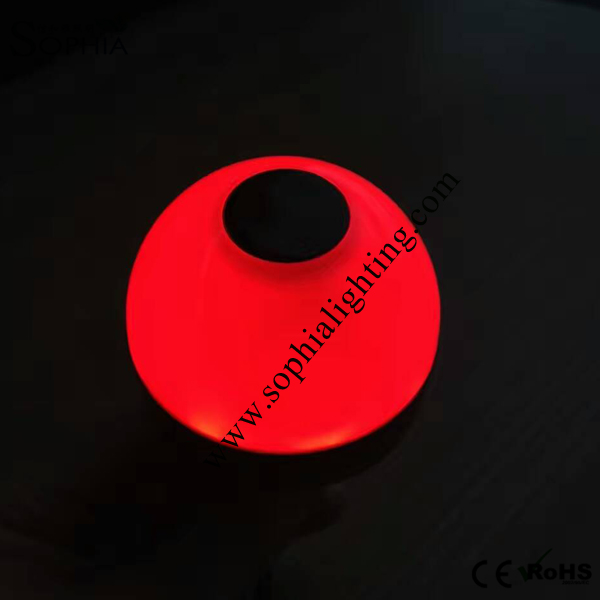

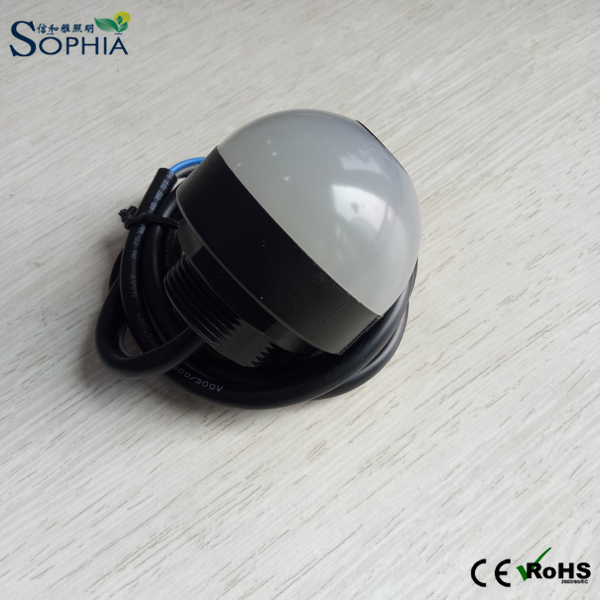

RL50-S Photoelectric Indicator

Input

12V-30VDC

Current

12VDC<75mA; 30VDC <40mA

Indication Colors

Red/Green/Blue/Yellow/White ( 7 colors available)

Performance

Maximum sense range 100mm:
For three colors: job inactivity-job activity-job finish;

For two colors: a Inactivity-toggle between activity and inactivity;

Momentary versions remain activated as long as touch is present







Electric protection

Protected again reverse polarity and transient voltage

Response time

<50milliseconds on and off

Output rating

Maximum load 150mA;

on state voltage: <2V 10mA DC;  <2.5V 150mA DC;

off state leakage current:<10uA at 30VDC

Working temperature ()

-40~50

IP rating

IP69K

LED life span (H)

100000 hours

Dimension(mm)

Ø50x H76.7mm

Installation

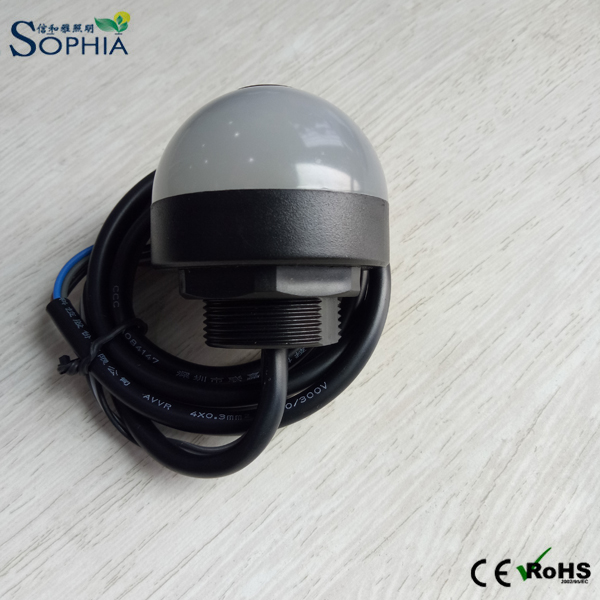

M30x1.5 thread, easy to install.

Material

Powerful SMD LED, high transmittance and reinforced ABS and polycarbonate housing, unique designed and patented driver, can get maximum seven independent colors.

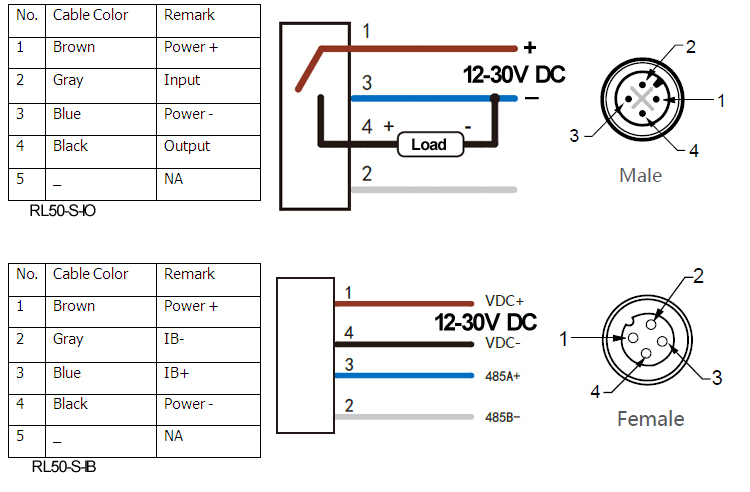

Wire connection

Integrated 5-pins(Bi-polar) or 8-pins(three color) M12 quick connector with0.3mcable or1mcable without connector

Feature

Compact and patented design, waterproof. Corrosion proof, oil proof. Can be widely used in various industry workshops;

Excellent immunity to false triggering by water spray, detergents, oils, and other foreign materials;

Very easy to install;

Three independent colors in one unit—Color 3 overrides Colors 1 and 2, Color 2 overrides Color 1

Eliminate hand, wrist, and arm stresses associated with repeated switch operation;

Actuated with finger, hand or palm or with work gloves



Approval

CE, FCC
